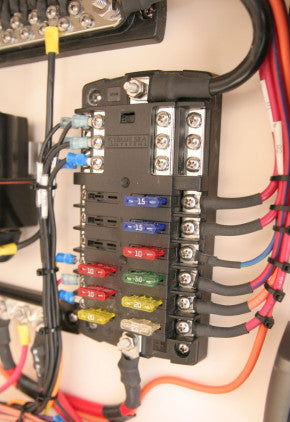

Consolidates branch circuits and in-line fuses

Positive distribution bus with #10-32 stud

Can be used for 24-hour circuits

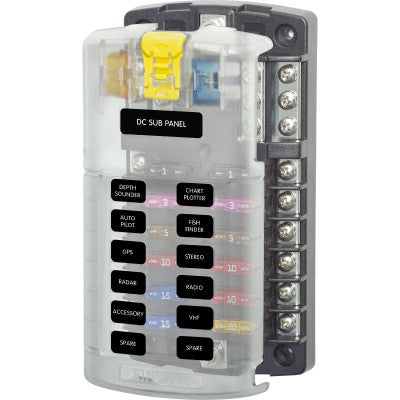

Models available with or without a cover

Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification

Fuse blocks with covers include 20 write-on circuit labels

Tin-plated copper buses and fuse clips

Accepts ring or snap fork type terminals

Accepts ATO® and ATC® fast acting blade fuses

Fuses sold separately

Circuits 12

Maximum Amperage Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application. 100A per block

30A per circuit

Maximum Voltage 32V DC

Mounting #8 Screw (M4)

Negative Bus #10-32 Stud

Positive Bus #10-32 Stud

Recommended Torque 24 in-lb (2.71 N·m)

Screw Terminal Torque 18 in-lb (2.03 Nm)

Screw Terminal Type #8-32 Screws with captive star lock washer

Weight 0.75lb (0.34 kg)
