Designed to withstand the rigors of wet environments and constant motion.

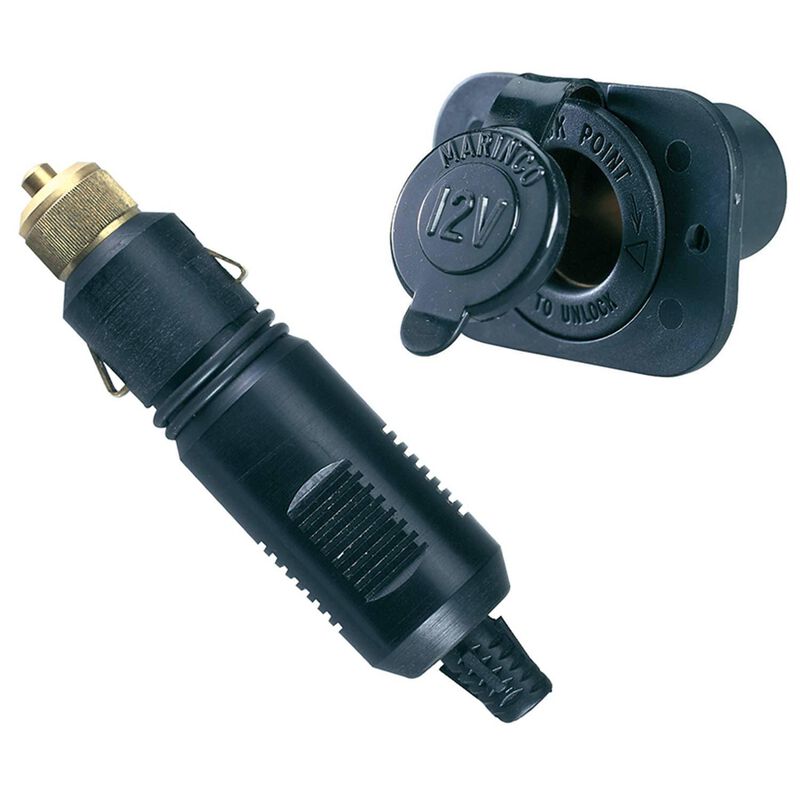

SeaLink® 12V receptacles and plug have large contact surfaces and are made of corrosion-resistant materials to ensure a solid contact and low voltage drop. A sealing ring around the shaft of the plug keeps out spray and seats the plug it firmly in the outlet. Ground contacts engage the receptacle so the plug can't be removed without twisting it 90°. Both components are compatible with existing plugs and receptacles.

Key Features

· Sealing ring in plug seals it from water intrusion

· Ground contacts act as a lock to prevent plug from being removed without twisting

· Corrosion resistant construction for marine use

· Compatible with existing 12V receptables and plugs

· Sold in kits or individual components

· 12VPK includes the 12VRC and 12VPG packaged together

Specifications

· Connections: 12 volt plug

· Max. Amperage: plug-10A, receptacle-20A

· Voltage: 12V

· Cable Size: Plug fits 16 AWG wiring (sold separately)

· Conductors: 2

· Material: High temp fiber reinforced nylon receptacle body with nickel plated copper alloy contacts
