Shimano Torium

Weight:

SKU:

Barcode:

Product type: Reels

Vendor: Shimano

Tags: Conventional, Shimano

Availability:

Description

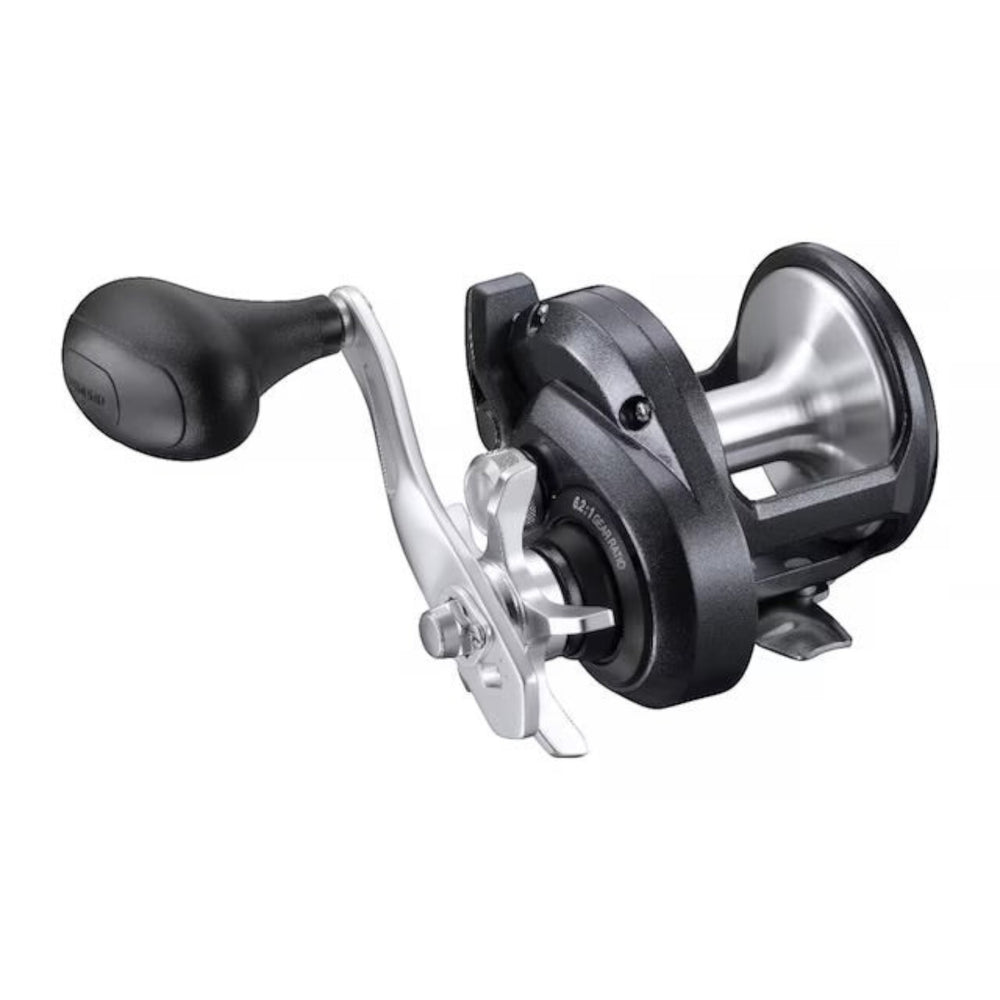

The lightweight Torium is a solidly-built star-drag saltwater reel perfect for live bait or bottom-fishing applications. Packed with features like Cross Carbon Drag, S A-RB and S-Compact Body, the Torium has what you need where it counts.

SPECIFICATIONS

PRODUCT CODE WEIGHT POWERPRO LINE CAPACITY GEAR RATIO MAX DRAG MONO LINE CAPACITY RETRIEVE LINE RETRIEVE PER CRANK BEARINGS
TOR14HGA
15
40/375, 50/370, 65/240
6.3:1
17
14/300, 16/270, 20/200
Right
38
3+1
TOR16HGA
18.9
50,530, 65/330, 80/250
6.2:1
24
16/450, 20/320, 25/260
Right
46
3+1
TOR16HGAL
18.9
50,530, 65/330, 80/250
6.2:1
24
16/450, 20/320, 25/260
Left
46
3+1
TOR16PGA
19
50/530, 65/330, 80/250
4.6:1
33
16/450, 20/320, 25/260
Right
34
3+1
TOR20HGA
19.2
50,710, 65/375, 80/310
6.2:1
24
20/420, 25/340, 30/280
Right
46
3+1
TOR20HGAL
19.2
50/710, 65/375, 80/310
6.2:1
24
20/420, 25/340, 30/280
Left
46
3+1
TOR20PGA
19.4
50/710, 65/375, 80/310
4.6:1
33
16/450, 20/320, 25/260
Right
34
3+1
TOR30HGA
19.8
50,1015, 65/515, 80/415
6.2:1
24
25/420, 30/350, 40/260
Right
46
3+1
TOR30HGAL
19.8
50/1015, 65/515, 80/415
6.2:1
24
25/420, 30/350, 40/260
Left
46
3+1
TOR30PGA
20.3
50/530, 65/330, 80/250
4.6:1
33
16/450, 20/320, 25/260
Right
34
3+1
TOR50
33.2
65/845, 80/710, 100/540
6.2:1
30
40/490, 50/440
Right
43
3+1





tech1
HEG
HEG consists of not only the gears, but also the frame, setplate, and handle-side sideplate. First we increased the size of the drive gear and the pinion gear to offer increased leverage and power. By using a one-piece frame that incorporates the setplate and adding a one-piece stamped sideplate, we have eliminated flex in the drive train that causes gears to bind under pressure.
tech1
HAGANE BODY
The HAGANE Body is a metal reel body with high rigidity. The body rigidity and impact resistance virtually eliminates body flexing on the reel while fighting fish. The result transforms the angler's actions directly into cranking power, increasing efficiency through strength.
tech1
CROSS CARBON DRAG
The Cross Carbon Drag material provides a wider range of drag settings compared to traditional drag materials. The Cross Carbon Drag provides the smoothest Shimano drag performance ever while providing anglers with increased durability.
tech1
SUPER FREE SPOOL
Super Free Spool eliminates friction on the spool shaft during the cast. Standard baitcasting reels are constructed in a way that when the clutch bar is pressed down, the pinion gear is freed and can actually drag on the spool shaft. This creates friction that can limit the length of a cast. But baitcasting reels with Super Free Spool are constructed so that the pinion gear is supported by a ball bearing. When the clutch is disengaged in preparation for a cast, the pinion gear and spool shaft are kept in perfect alignment. The result: zero friction is placed upon the spool shaft and enhances casting performance.
tech1
S A-RB
S A-RB bearings are put through the same process as Shimano’s A-RB bearings but feature shields on both sides of the bearings. These shields reduce the possibility of salt or sand inhibiting rotation of the bearing.
tech1
S-COMPACT BODY
S-Compact Body allows for all-day comfort and improved fishability by making the palming side plate up to 25% smaller than the A-Side plate.
